Introduction

The two main objects related to shadow casting in Candle are light sources and edges.

For the lights, there is an abstract class called candle::LightSource, implemented by candle::RadialLight and candle::DirectedLight. They inherit from sf::Drawable and sf::Transformable, so they can be used as common SFML entities.

For the edges, there is a structure called candle::Edge, that can represent a segment by the coordinates of its ends. However, the raycasting function requires that the shadow casting edges are stored in a std::vector, so Candle provides a convenient alias for std::vector<candle::Edge> called candle::EdgeVector. This is what you should be using to manage your edges.

They interact through the function candle::LightSource::castLight, that takes two iterators from a candle::EdgeVector and use the edges contained between them to compute the area illuminated by the light source.

Let's see with a sample of code.

#include <SFML/Graphics.hpp>
#include "Candle/RadialLight.hpp"

int main(){
    // create window
    sf::RenderWindow w(sf::VideoMode(400, 400), "app");

    // create a light source
    candle::RadialLight light;
    light.setRange(150);

    // create an edge pool
    candle::EdgeVector edges;
    edges.emplace_back(sf::Vector2f(200.f, 100.f),
                       sf::Vector2f(200.f, 300.f));

    // main loop
    while(w.isOpen()){
        sf::Event e;
        while(w.pollEvent(e)){
            if(e.type == sf::Event::Closed){
                w.close();
            }else if(e.type == sf::Event::MouseMoved){
                sf::Vector2f mp(sf::Mouse::getPosition(w));
                light.setPosition(mp);
                light.castLight(edges.begin(), edges.end());
            }
        }

        w.clear();
        w.draw(light);
        w.display();
    }
    return 0;
}

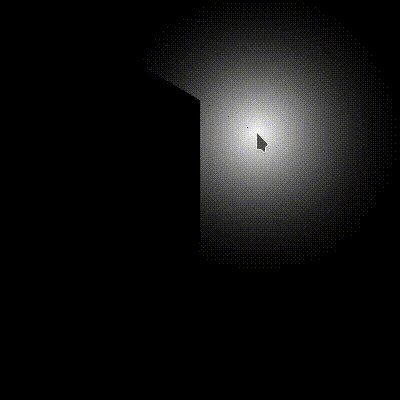

The previous code results in a light that follows the pointer and a vertical edge in the center of the screen.

Preview

Note how the castLight function is called only when the mouse is moved. Although it shouldn't be very expensive when a light has a normal amount of edges in range, it is preferable not to abuse it unnecesarily. Therefore, we will call it only when the light has been modified or the edges in range have moved.

Radial light and Directed light

In the previous example we have used a candle::RadialLight. This is the light type that casts rays in any direction from a single point. The other type is candle::DirectedLight, that casts rays in a single direction, from any point within a segment.

Radial lights

Directed lights

Problems with intersections

Candle doesn't behave well when segments intersect. The reason is that lights project only to the end of segments, so intersection points, that are within the edge, are ignored.
